We are one of the leading Agarbatti Heat Pump Tray Dryer manufacturers and Suppliers, Exporters also undertake design and supply on turnkey projects of Agarbatti Room Dryer, Production capacity from 600Kg to 10000Kg Raw Agarbatti, Computer Sambrani, Dhoop Stick, Masalabatti, Dhoopcone, Florabatti, can be dried with our modern technology adapted dehumidifier and heat pump integrated machine. to control of humidity and temperature allows a drying cycle to be created that is custom- Built product. The machine will be most useful during rainy season and clouded weather conditions it operates consistently throughout year and not much more labour work involved.
AGARBATTI DRYING IN RAINY SEASON HOW DOES SCANAIR HEAT PUMP DRYER WORKS?
Drying Room loaded with Agarbatti Sticks usually on trolleys or racks in the Room after doors closed Heat and Dehumidification cycle will be started automatic programmed cycle or simple on/off initial heat input to get to operating temperature Between 40-60˚C but may be up to 65˚C. Heat encourages moisture to evaporate from product by increasing internal vapour pressure.
Scanair Using the principle of heat pump for heat recovery from vapor condensation, no waste heat emission, saving operating cost Saving energy by over 40% more than intensive drying rooms and over 60% more than vertical type drying rooms Using closed type drying, no contact with external air and good drying quality.
Hot Air flow over the Agarbatti Sticks takes moisture away from surface taking it to the dehumidifying coil, which may be assisted by blowers positioned in the section. Evaporator extracts moisture from proportion of air flow that passes through the heat exchanger unit used for drying wet agarbatti in less time. Latent heat is returned back into chamber reducing the requirement for heat input the lower vapour pressure of the dried air increase the rate of evaporation.

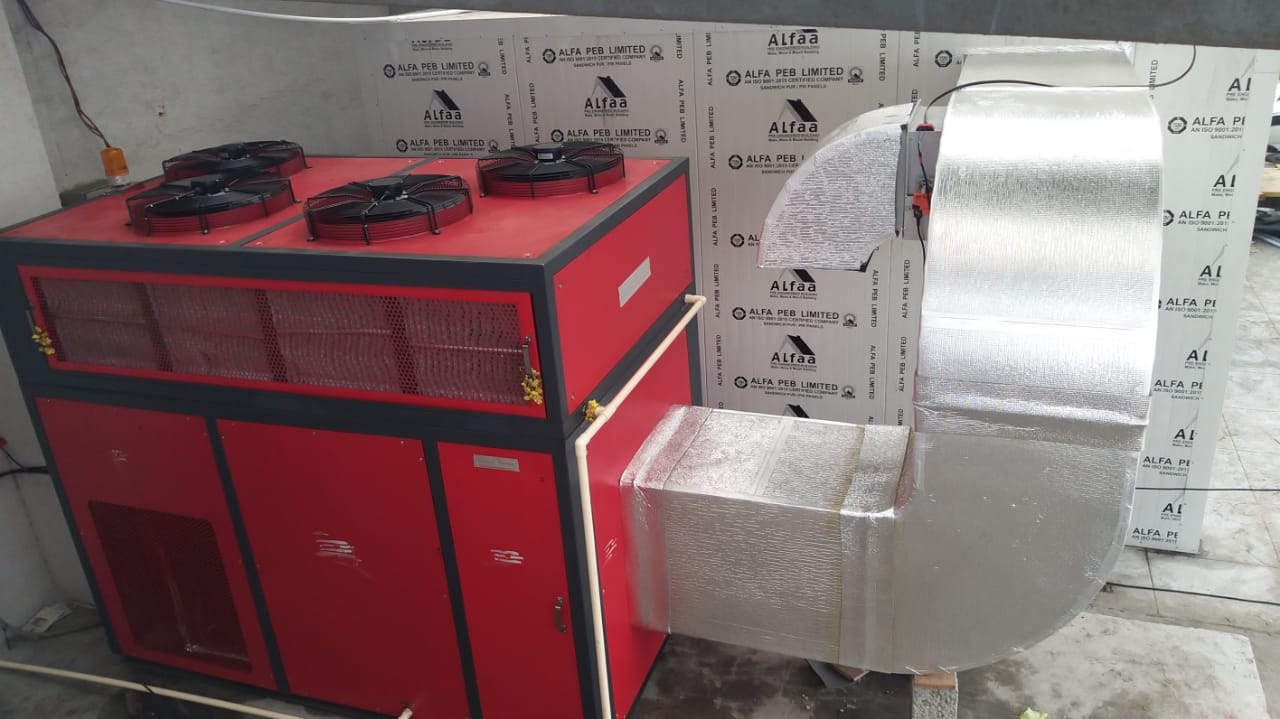

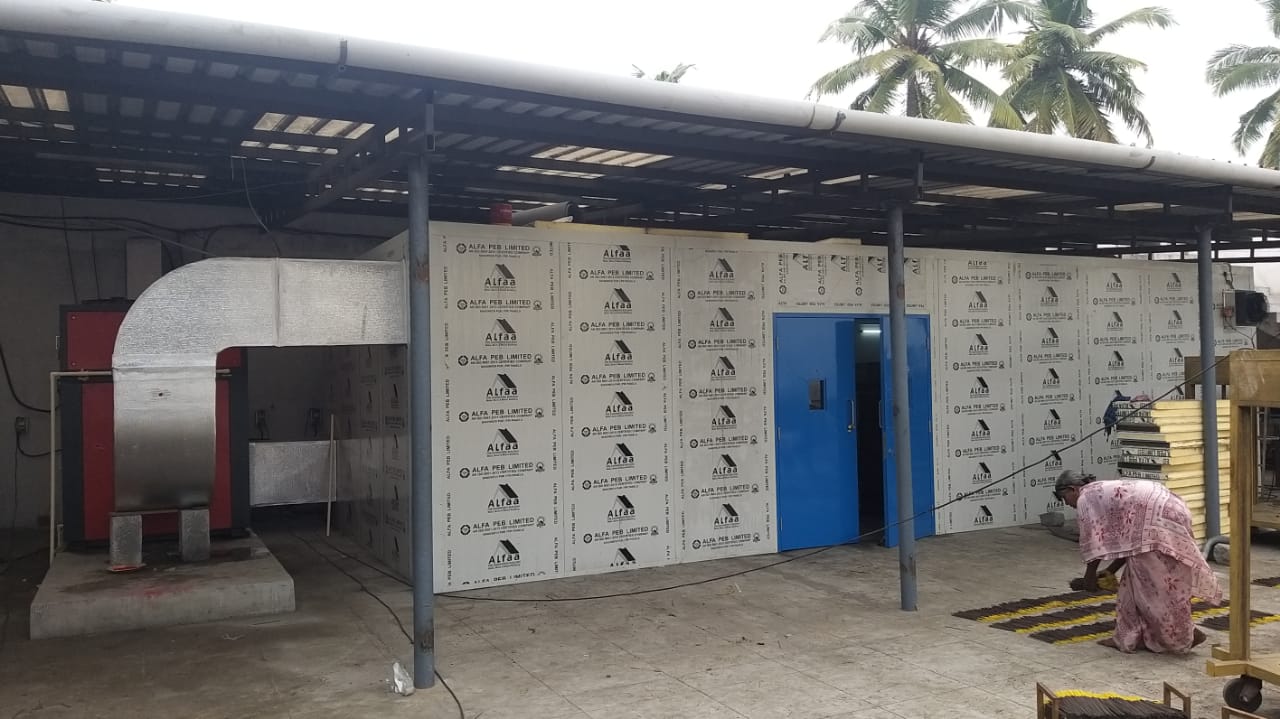

Modular puff panel 60mm construction user friendly design and fully automated PLC Controlled seven stage operation flexible programme customer can set temperature and relative humidity operators to set the desired drying parameters effortlessly once the settings are configured the drier operates continuously. Airflow System managed by centrifugal blower integrated with the heat pump outlet supply air duct air distribution managed precisely through supply air diffuser grill exhaust air managed by PLC logic operating through damper installed exhaust fan. For a turnkey project drying room size like W12Ft X L 24Ft X 12 Ft height , L36ft, L48ft, L72ft,L84ft, the puff panels and heat pump and ducting material, insulation material will come with truck will be assembled in the site and installation will be done through our technicians.
